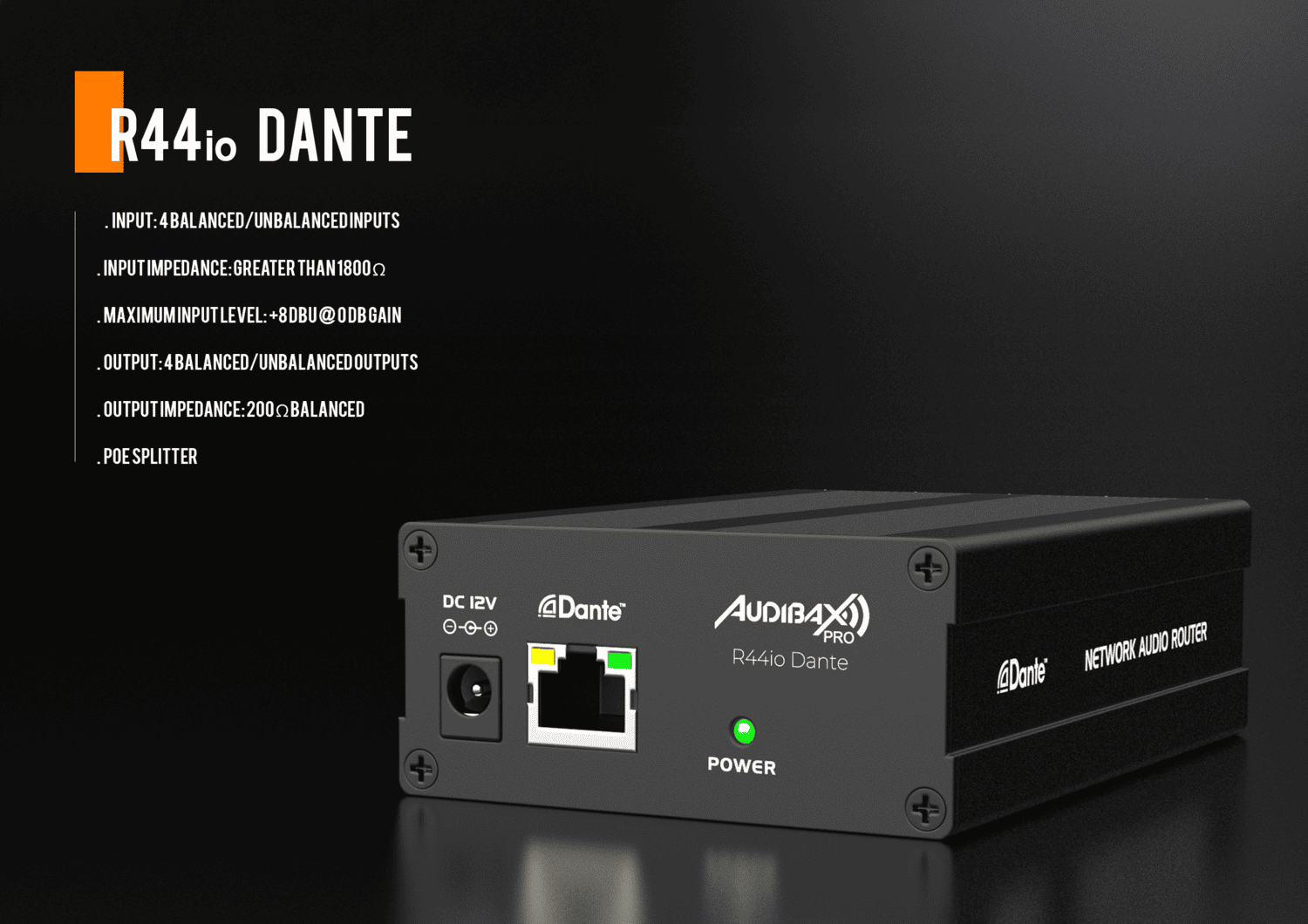

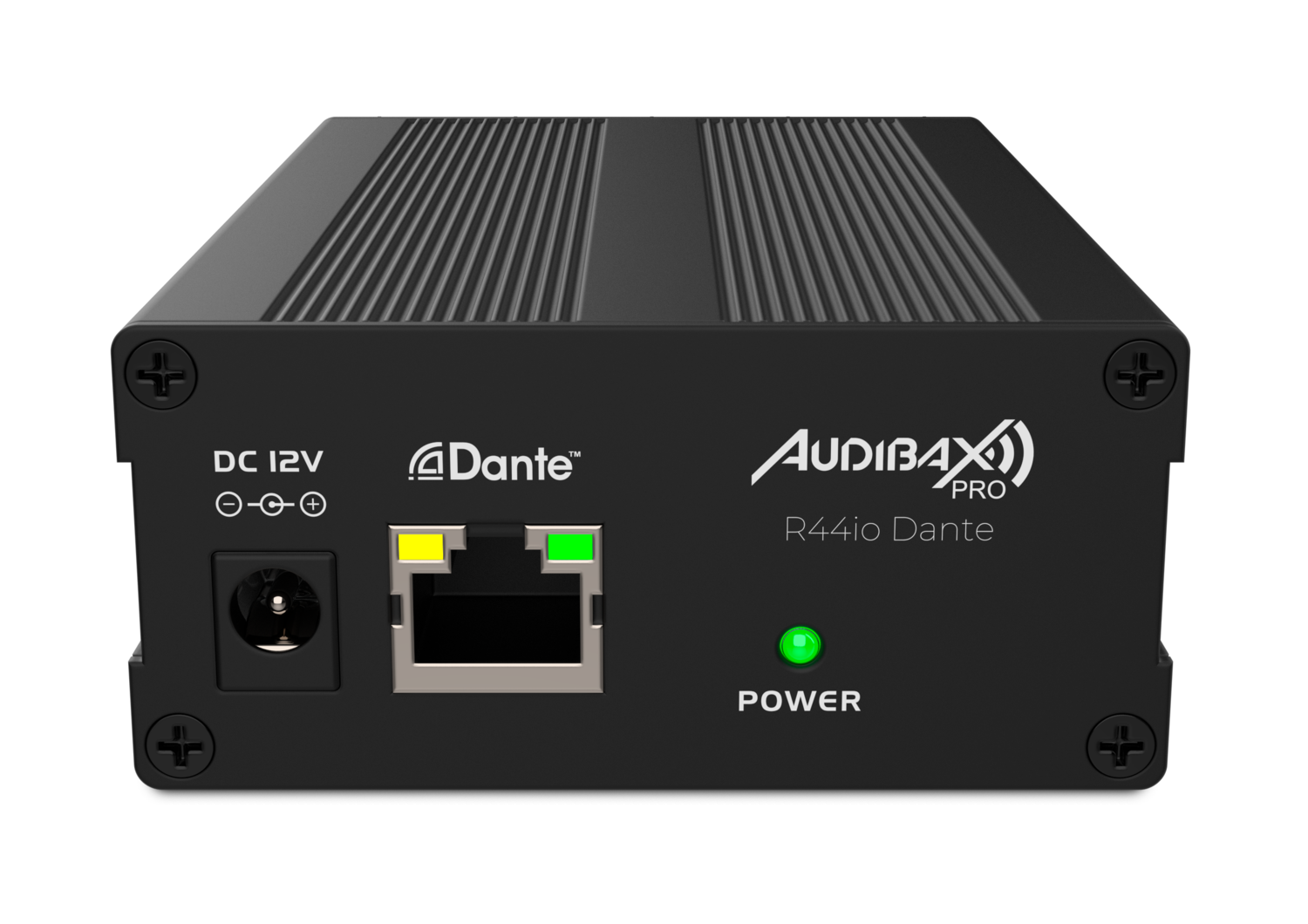

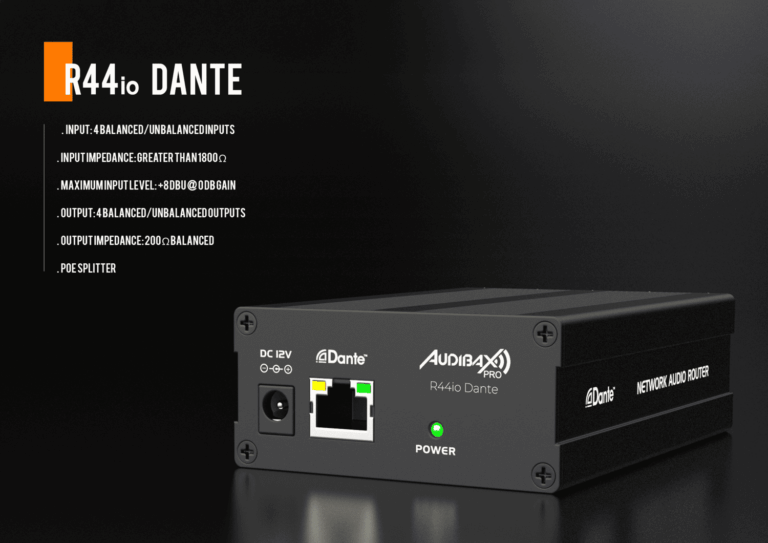

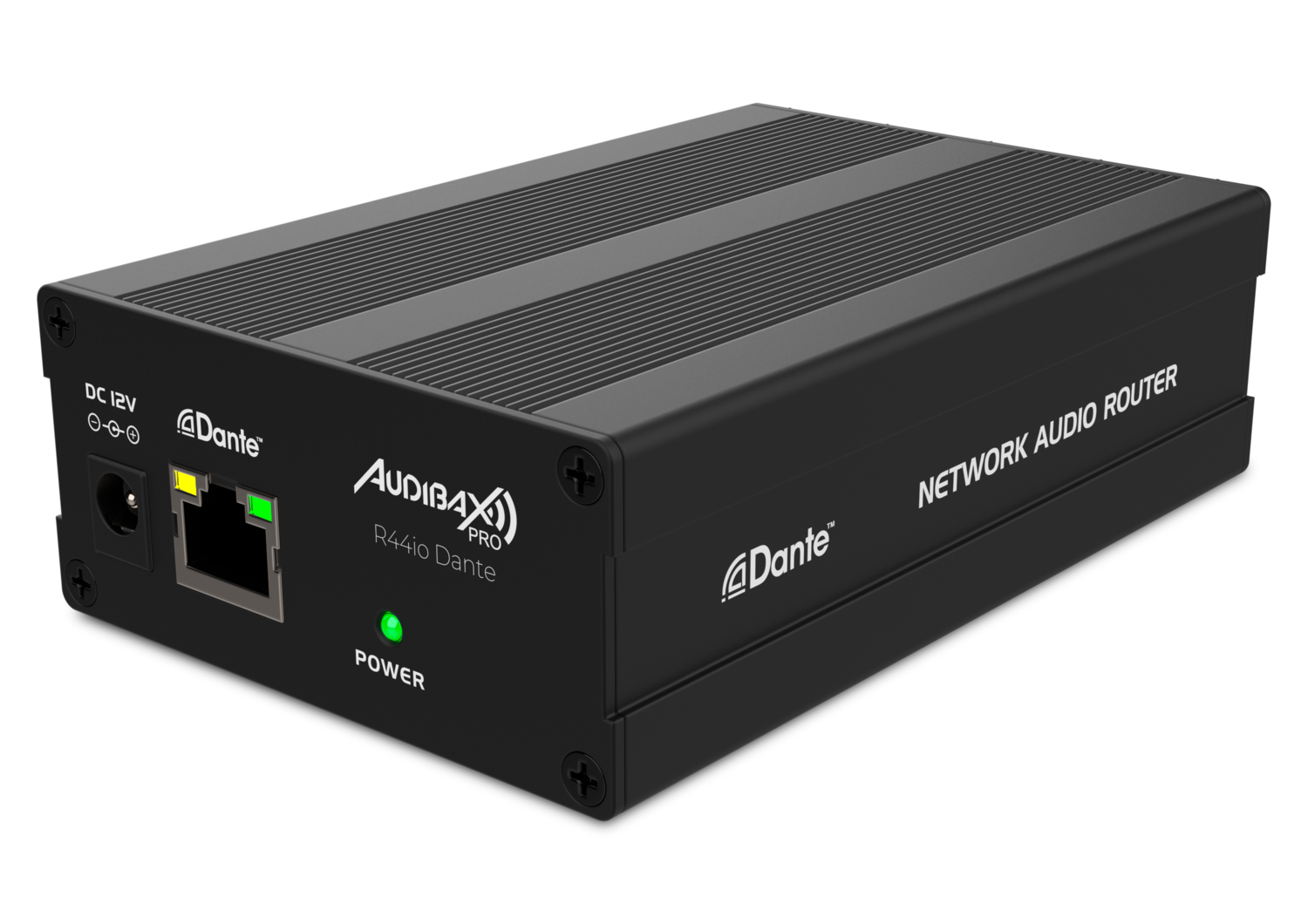

R44io Dante

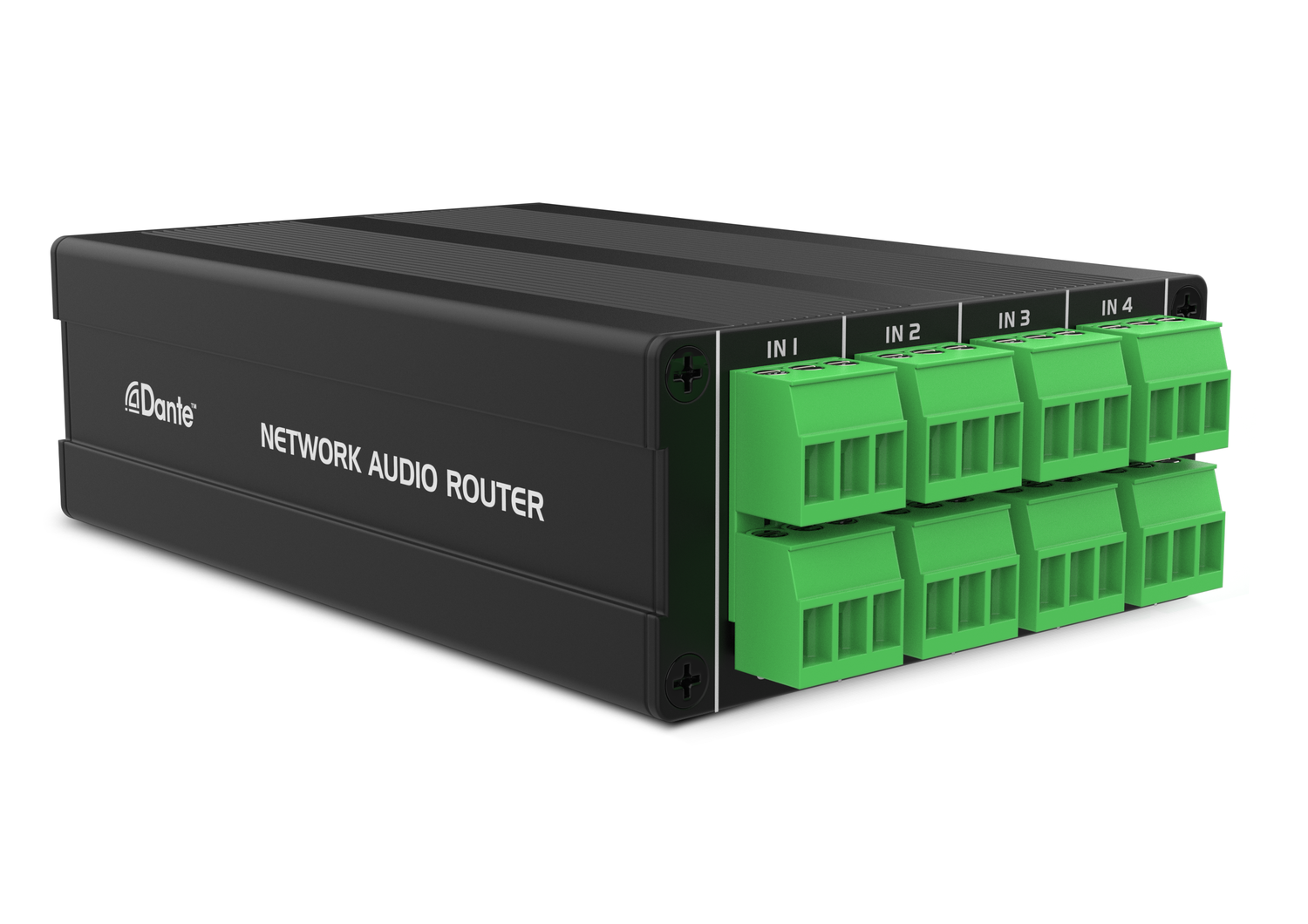

Audibax R44io Dante interface machine is used for the signal conversion between analog audio signal and Dante digital audio.
This processor supports 4-channel analog audio signal balanced input and output, including 4-channel Dante digital audio signal input and output of 2 Dante devices.

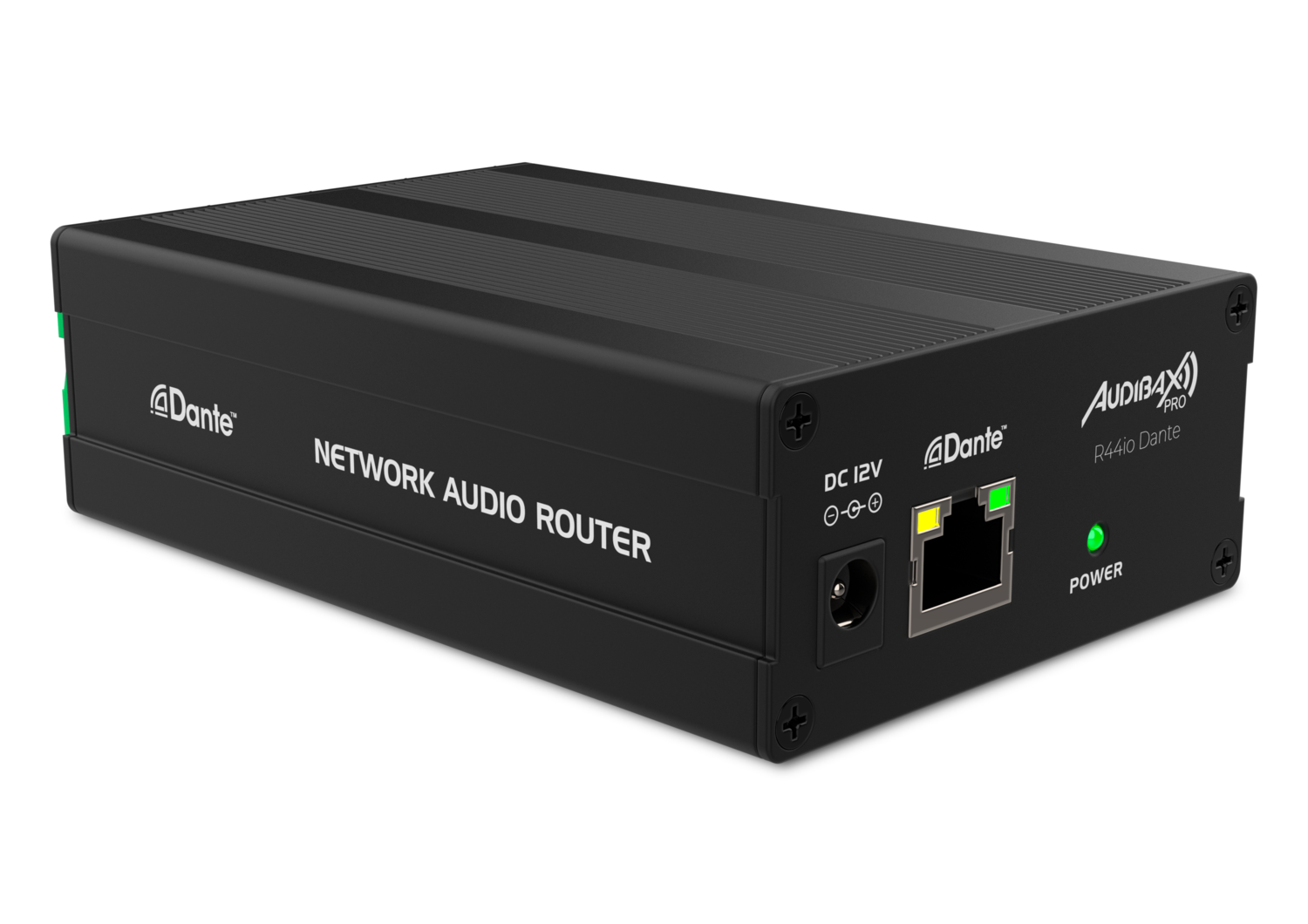

It is powered by DC12V, which can be used with 802.3af standard POE switch when adding POE splitter.

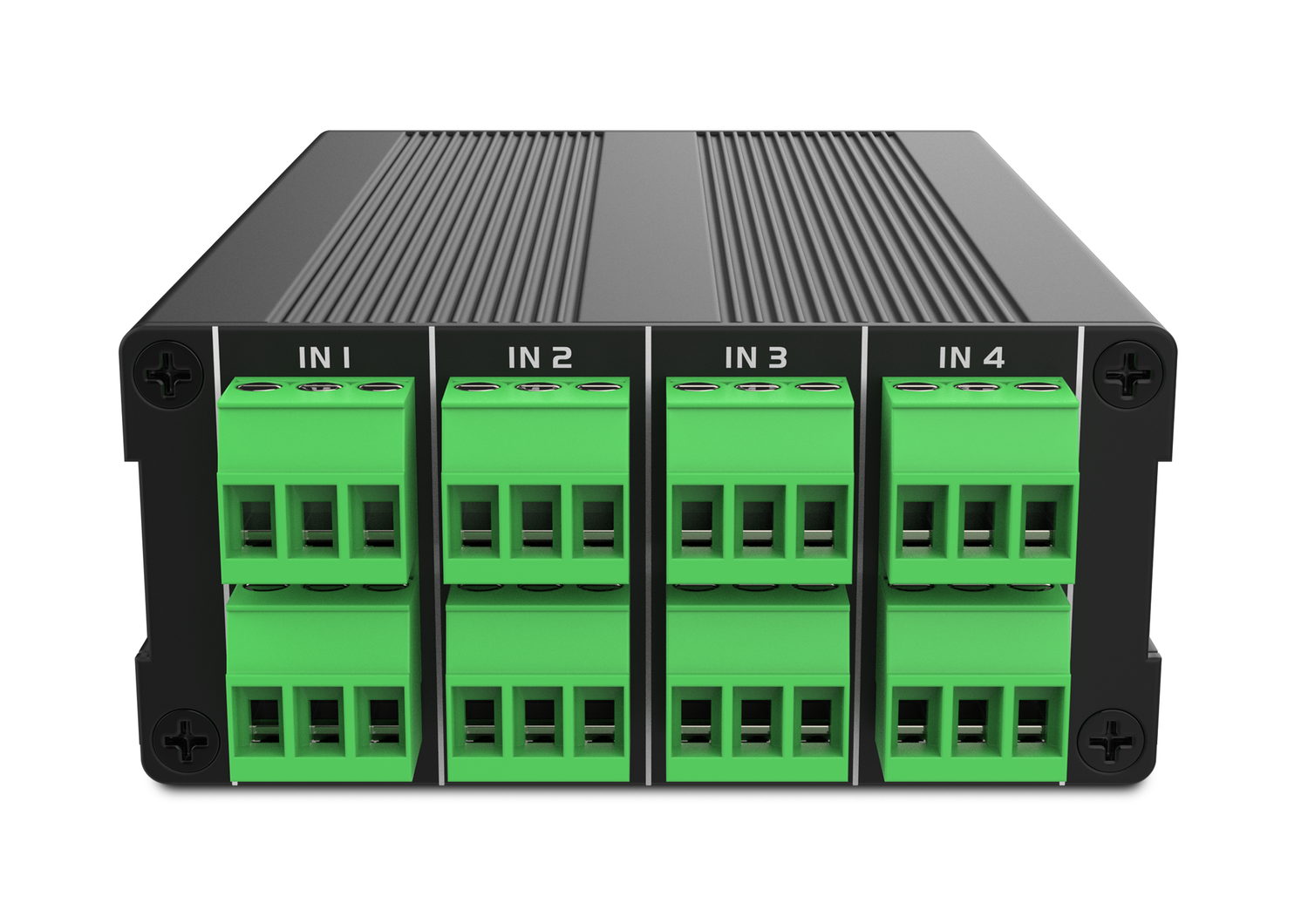

• Input: 4 balanced/unbalanced input
• Input Impedance: Greater than1800 Ω
• Max Input Level: +8dbu@ 0dB gain
• Output: 4 balanced/unbalanced output
• Output Impedance: 200Ω balance
• Max Output Level: +20dbu balance
• Freq Response: 20~20KHz, ±1dB
• THD: Less than 0,02%
• Power Requirements: 12V DC

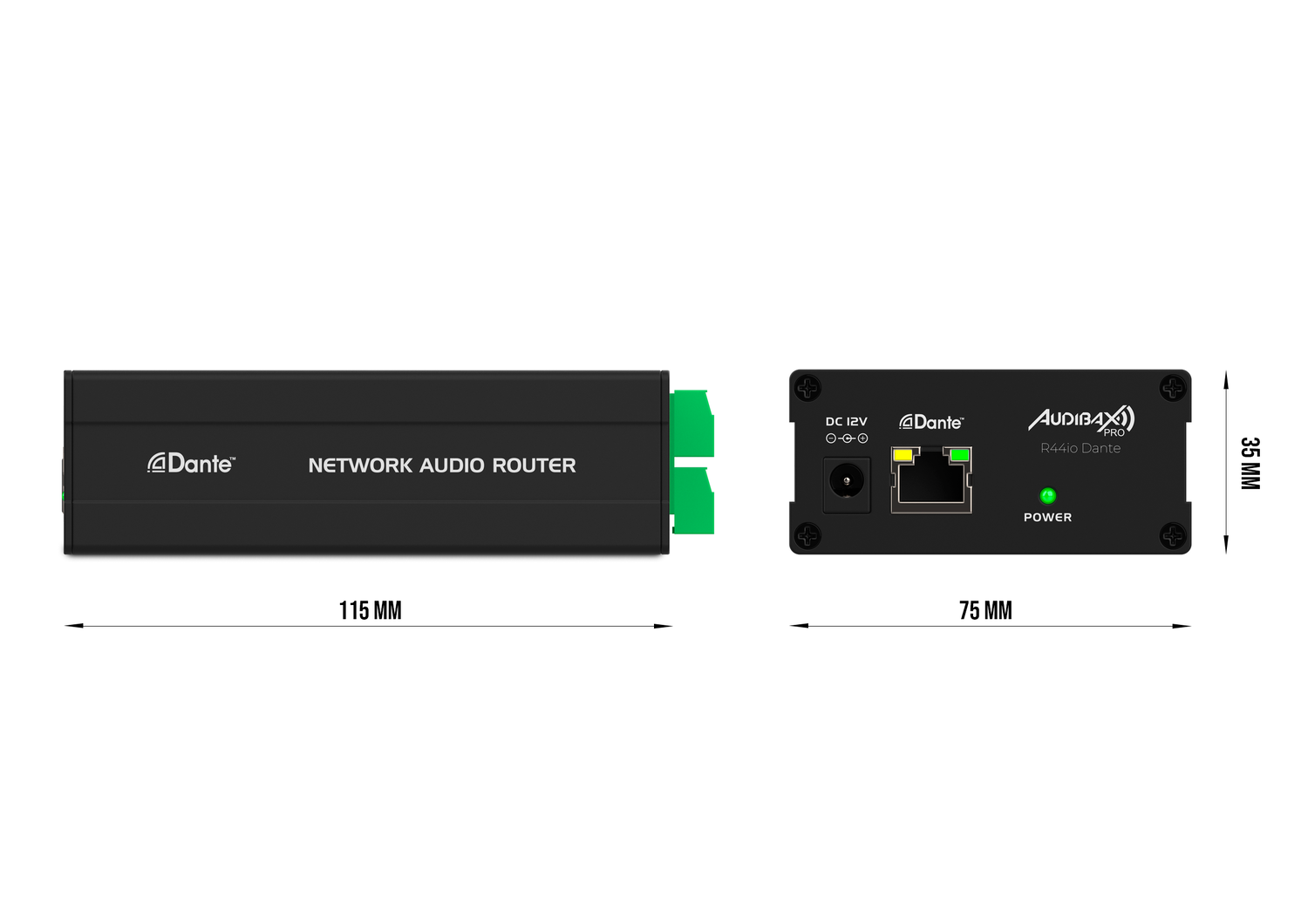

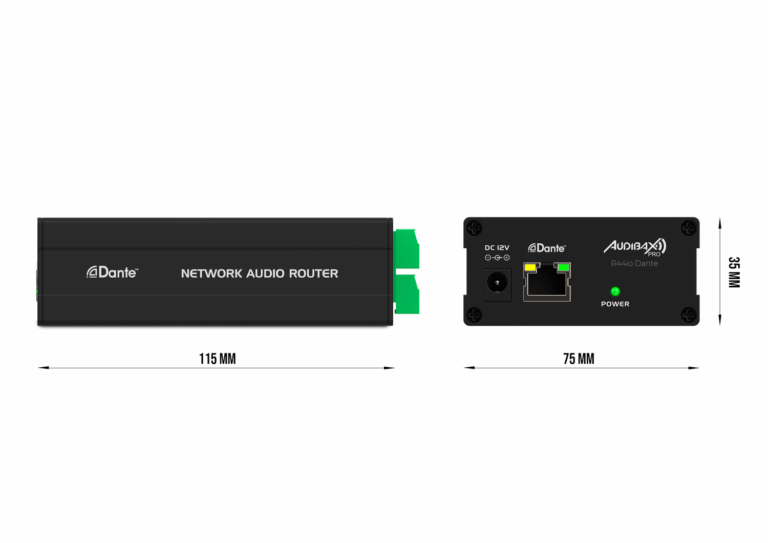

• Dimensions: 123x75x35 mm
