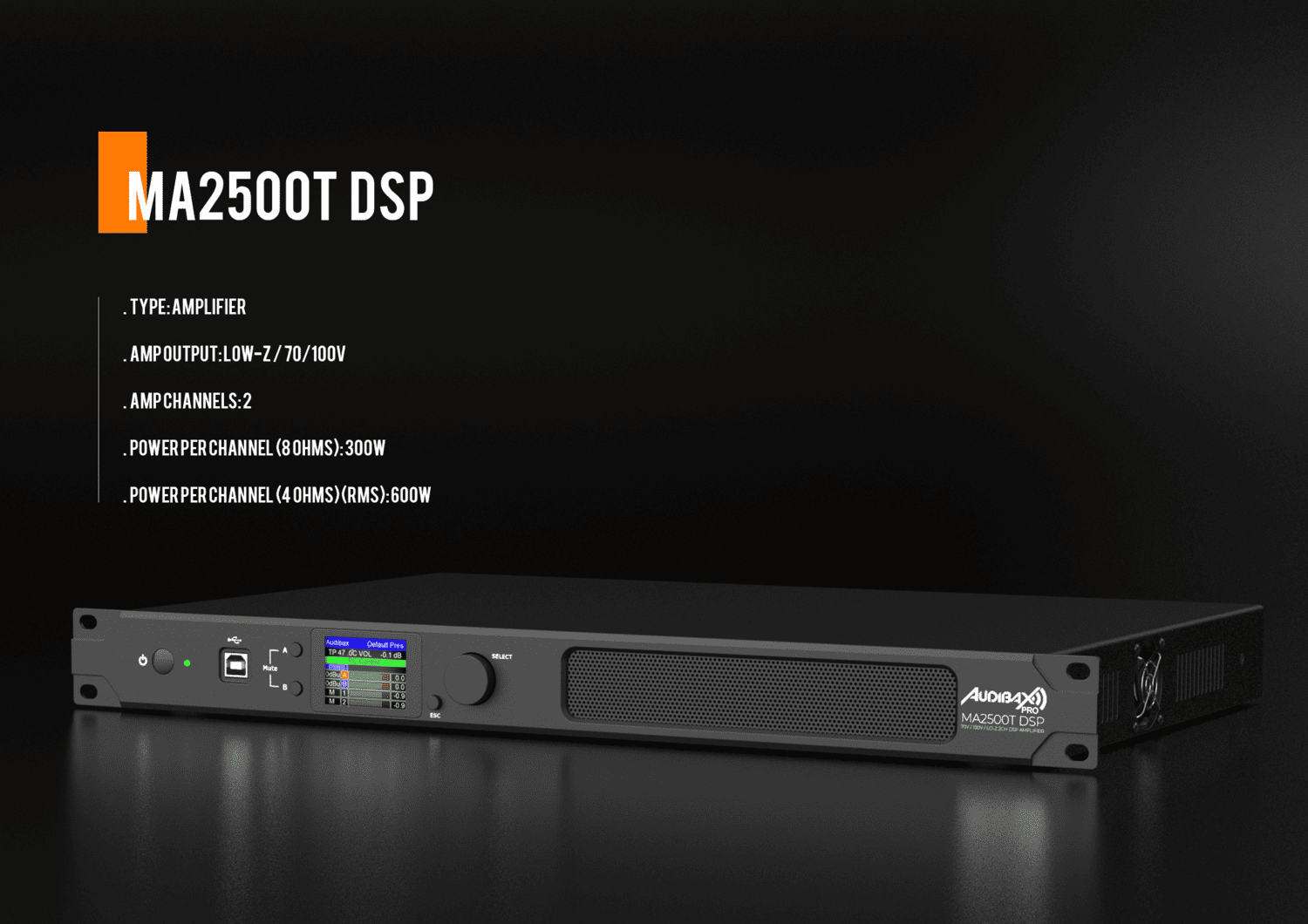

MA2500T DSP

  • Type: Matrix Amplifier
  • Amp Out: Low-z /70/100V
  • Channels Amp: 2
  • Power Per Channel 8 Ohms (RMS): 300W
  • Amp type: Class D
  • Inputs Line/Mic Channel: 2
  • DSP Processor: DSP Control + Ethernet
SKU 7427254441732 Categories , ,

Description

  • Type: Matrix Amplifier
  • Amp Out: Low-z /70/100V
  • Channels Amp: 2
  • Power Per Channel 8 Ohms (RMS): 300W
  • Amp type: Class D
  • THD+Noise @ 1kHz Full Power: <0,01%
  • Channel crosstalk @ 1 kHz: -70dB
  • Singal To Noise Ratio: >94dB
  • Power Bridge: LoZ 600W/100V-600W
  • Dimensions: 1 Unit 19″
  • Inputs Line/Mic Channel: 2
  • Inputs Line Connector: Euroblock+XLR
  • Out Line Connector: XLR
  • Interface control: USB/Ethernet/Rs232/485
  • Tone control: DSP Control
  • DSP Processor: DSP Control + Ethernet
  • Out Connectors Amp: Speakon + Terminal
  • Alarm Mode: Limiter & Peak
  • Mount Type: Rack Mount
  • Power Supply: AC 180V-264VAC, 50-60Hz
  • Weight: 3,2Kg
  • Dimensions: 483 x 300 x 44,5 mm

Specifications

Additional information

Download

Software Power Control
application/zip
14 MB
Audibax Pro MA2500T DSP MA2500T DSP Dante User Manual
PDF
15 MB
