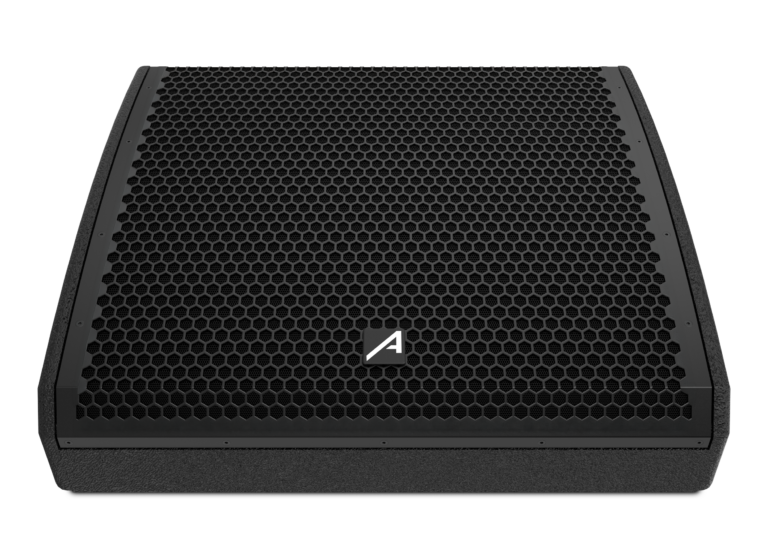

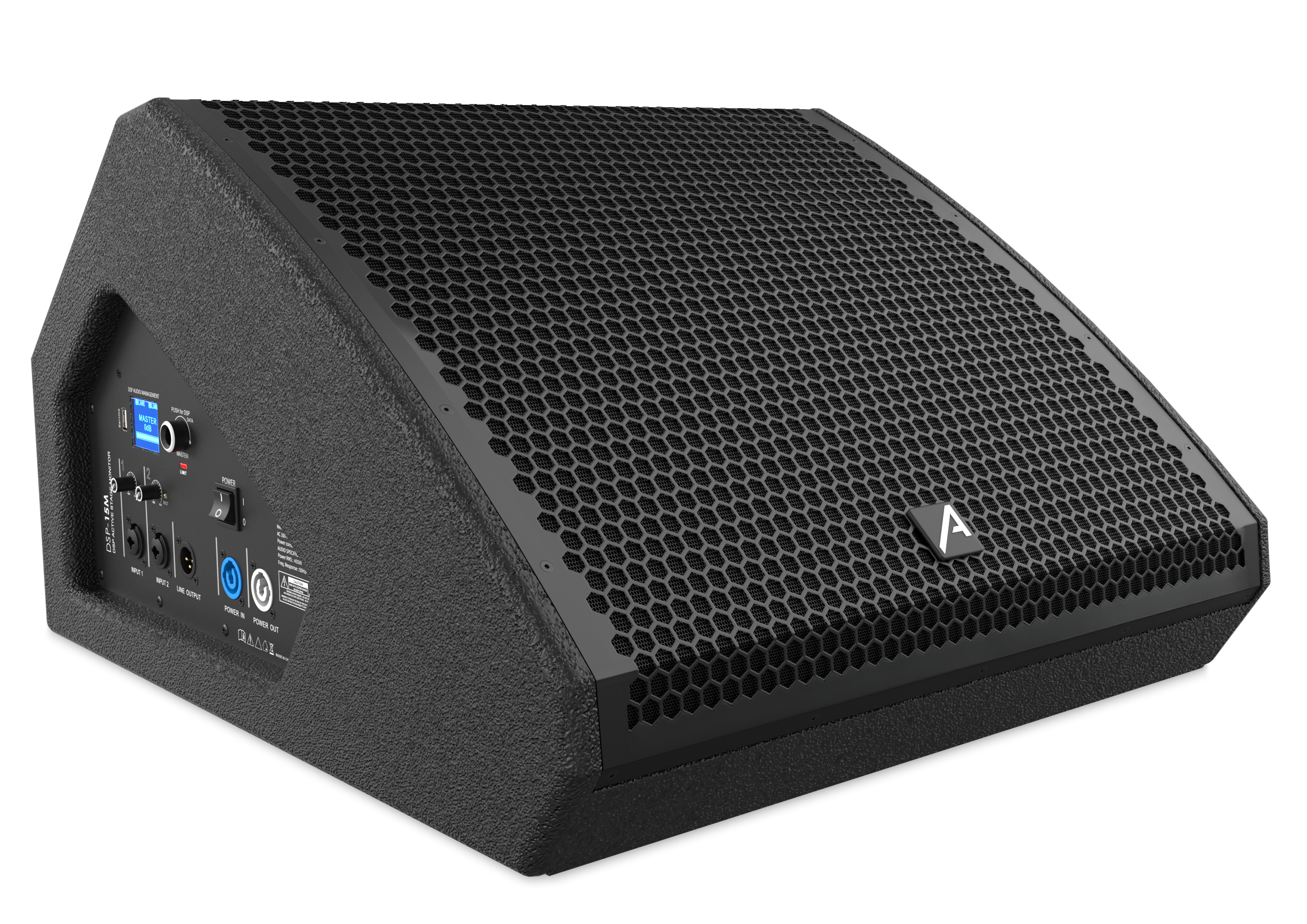

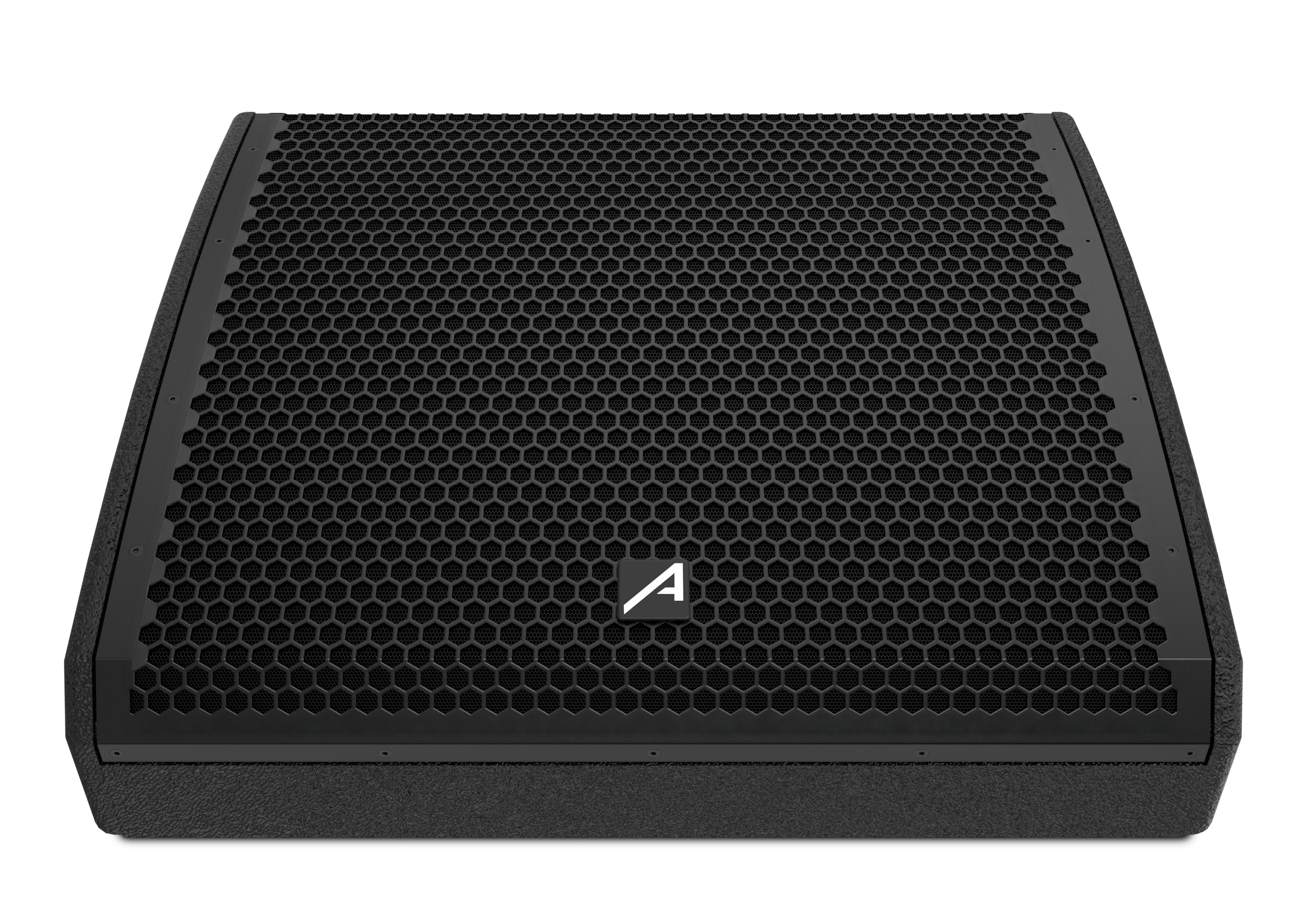

The Audibax Pro DSP15M is a high-performance active stage monitor designed to deliver exceptional sound quality in professional environments. Equipped with a 15” speaker and a titanium high-frequency driver with a 2.5” voice coil, this monitor ensures clear and accurate reproduction even in demanding situations. Its DSP processing with presets, EQ, and crossover allows for sound adjustments to meet specific event needs.
The coaxial configuration of this monitor allows for phase-coherent emission from a single point, optimising even sound dispersion, minimising feedback in live applications, and allows for a compact design with no loss of acoustic performance.
With a nominal power of 400W RMS and a peak of 800W, the DSP15M provides a maximum SPL of 122dB/128dB (peak), ensuring powerful and clear sound even on large stages. Additionally, its XLR connectivity facilitates integration into professional audio systems. The frequency range from 50Hz to 20KHz (-10dB) ensures a solid and clear bass response.
Speaker Type: Active 2 Ways
Woofer Driver: 15‘’
Woofer voice coil: 2.5″
HF Driver type: horn
HF Driver: 4.5″
HF Driver Voice Coil: 1.75″
Frequency Response: 50Hz-20KHz(-10dB)
Maximum SPL (db): 122dB/128dB(peak)
Sensitivity (1w/1m): 95dB
Impedance: 8 ohms
Dispersion: 60°H x 90°V

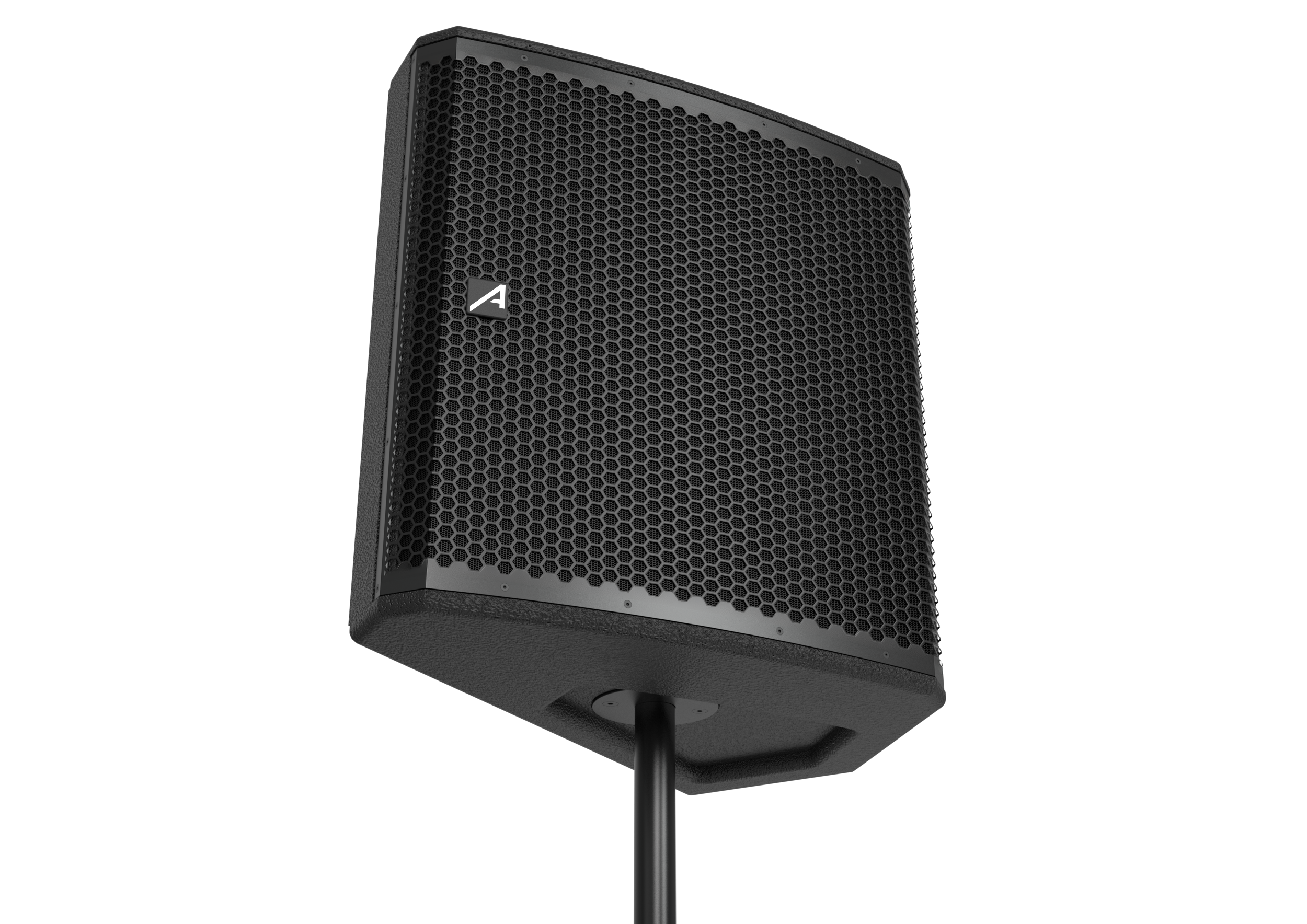

Mount: Floor and stand

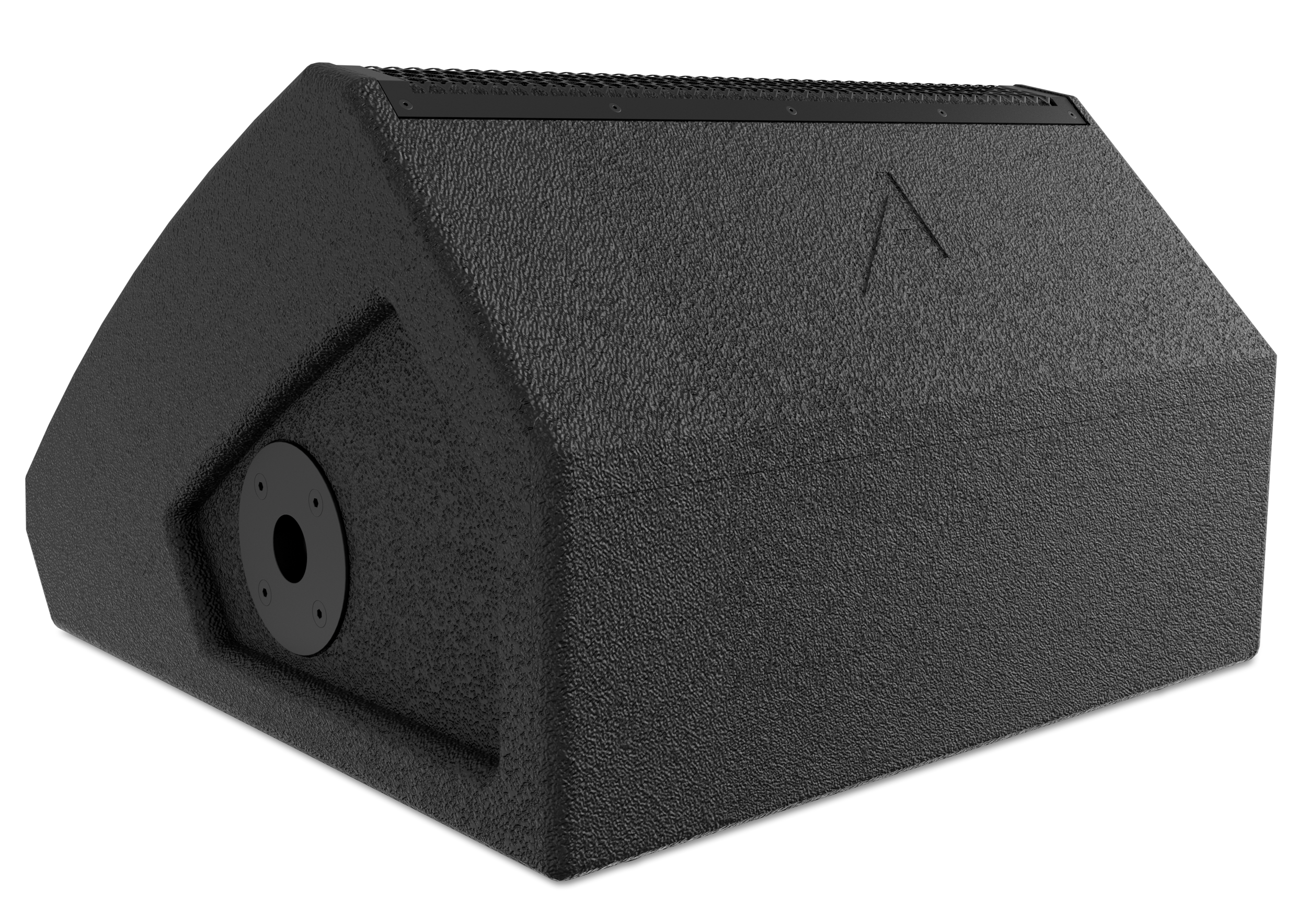

Mount Type: Flange 36mm

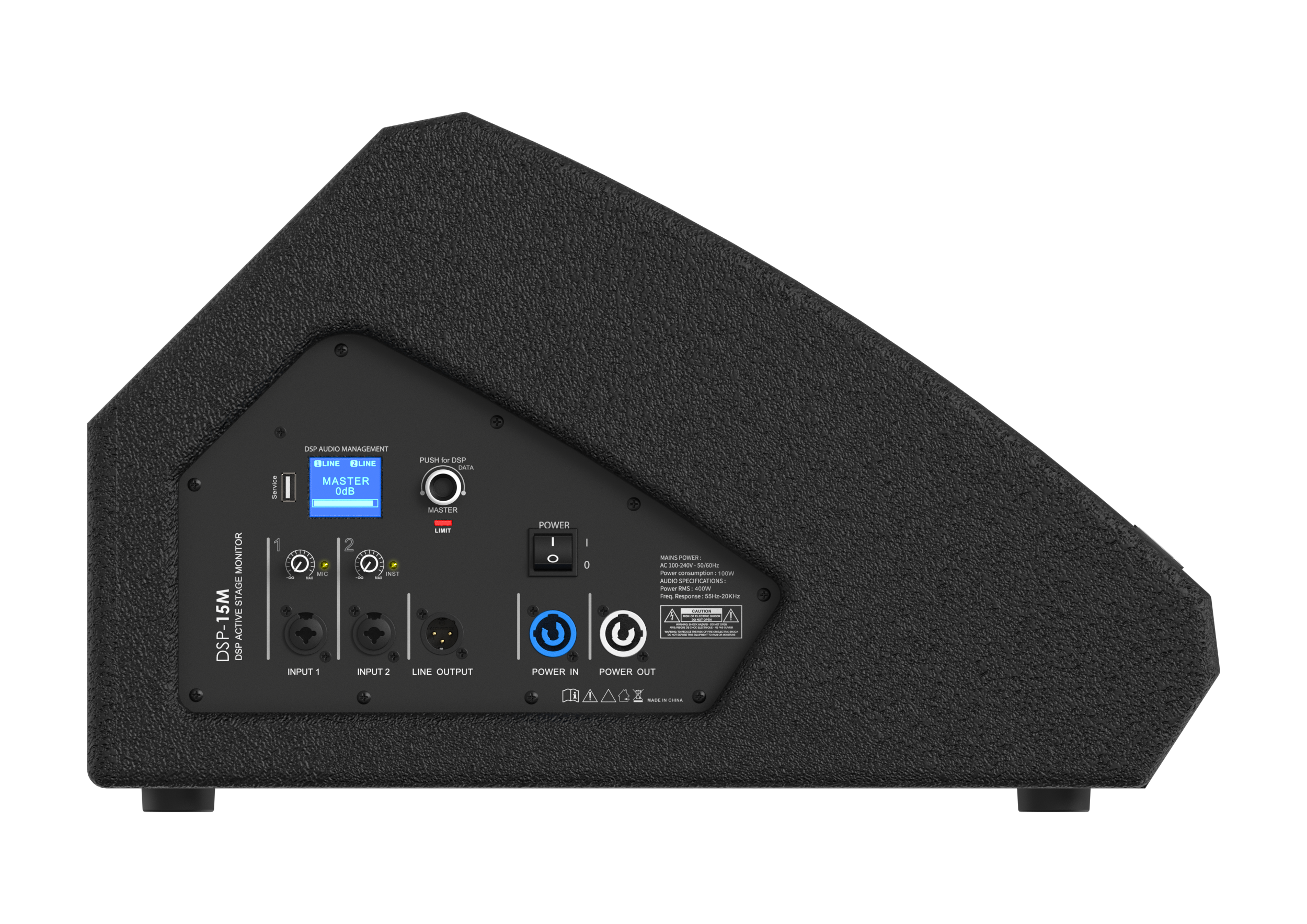

Mic / Line Inputs: 2
Mic / Line inputs connector: XLR/1/4 Jack
Line outputs: 1
Line outputs connector: XLR
DSP Processor: Yes
Amp Power (RMS): 400W
Amp Power Peak: 800W
Enclosure Finish: Plywood
Power Supply: AC100-240V
Power Consumption: 100W
Solutions: Rental, Leisure, Hospitality, Sport & Wellness
1 x DSP15M
2 x 1.8 Powercon cable (EU + UK)
1 x User’s manual
Model: DSP15M
ID: 10319364
Brand: Audibax Pro
EAN: 8474407184748
Category: Active Speakers
