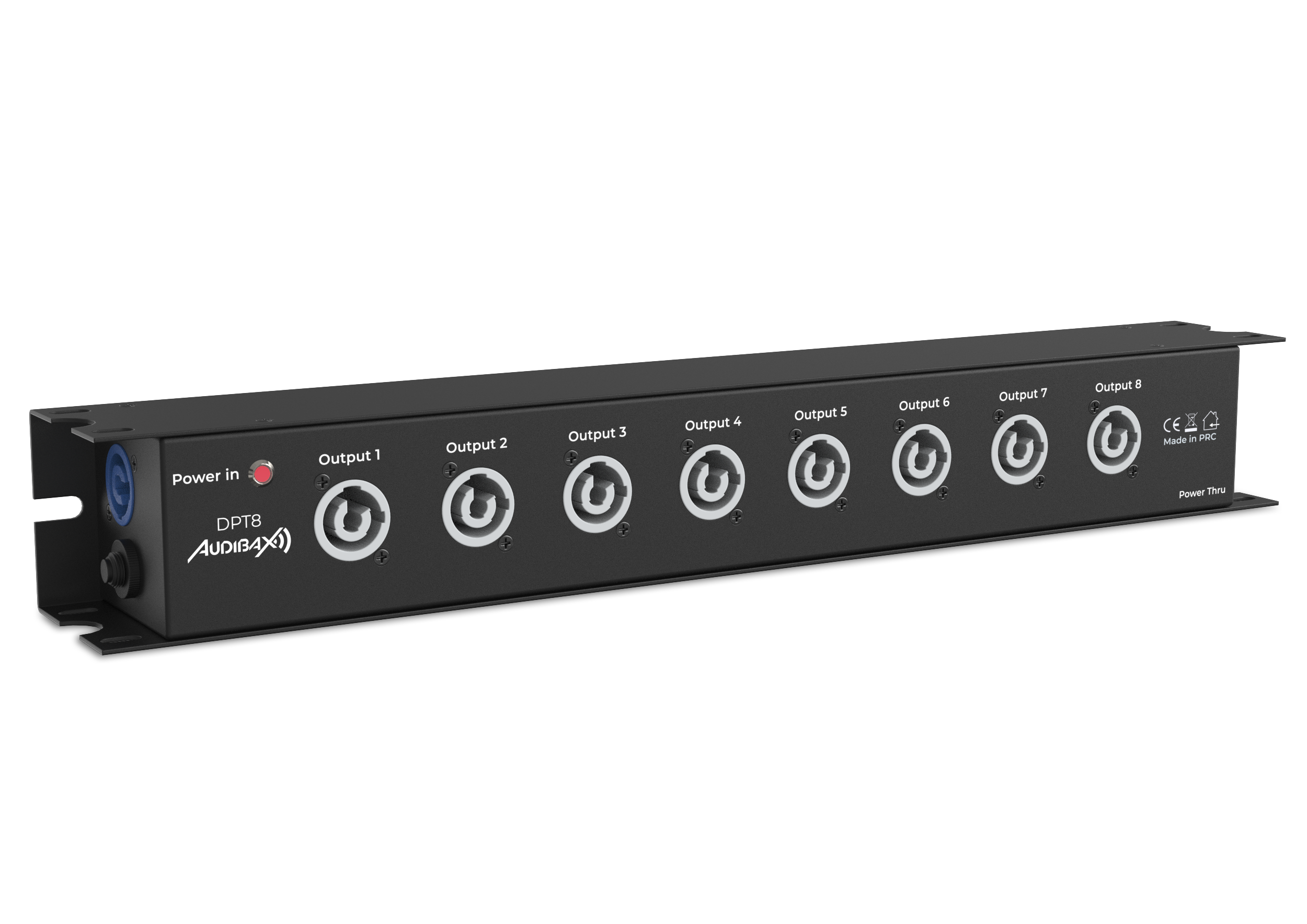

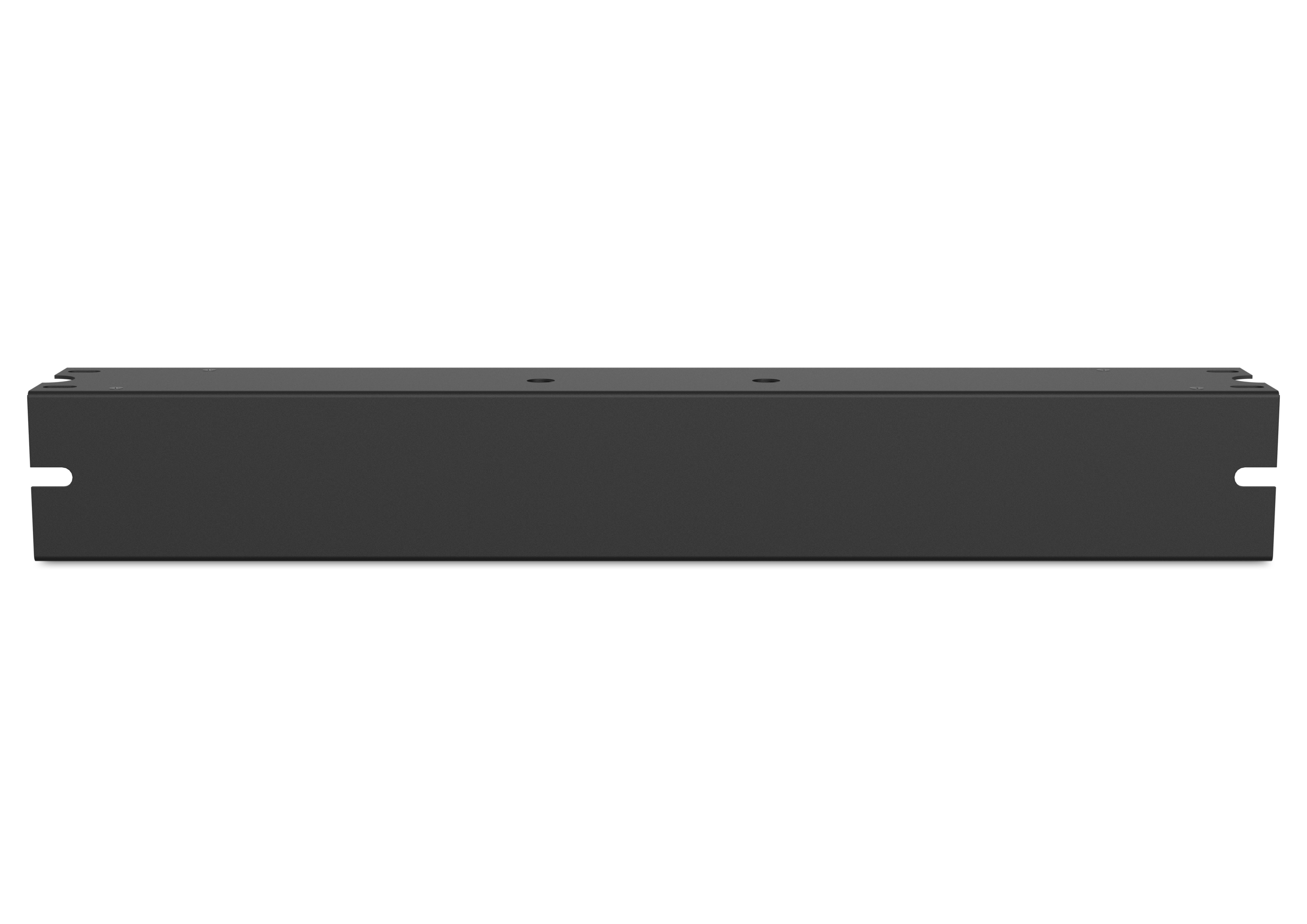

DPT8

The DPT8 is a professional power strip designed for rack mounting, ideal for audio and lighting installations and technical environments where safe and stable power distribution is required. With 8 outlets plus 1 link and PowerCON connectors (blue input and gray output), it allows for the efficient connection of multiple devices, supporting up to 16 A and 3.5 kW of maximum power. Its rugged metal construction and CE and RoHS certifications ensure safety and durability in professional applications.

A compact, robust, and practical solution for rack systems, events, and demanding technical setups.

General Specifications

• Color: Black
• Type: Rack-mount / Vertical

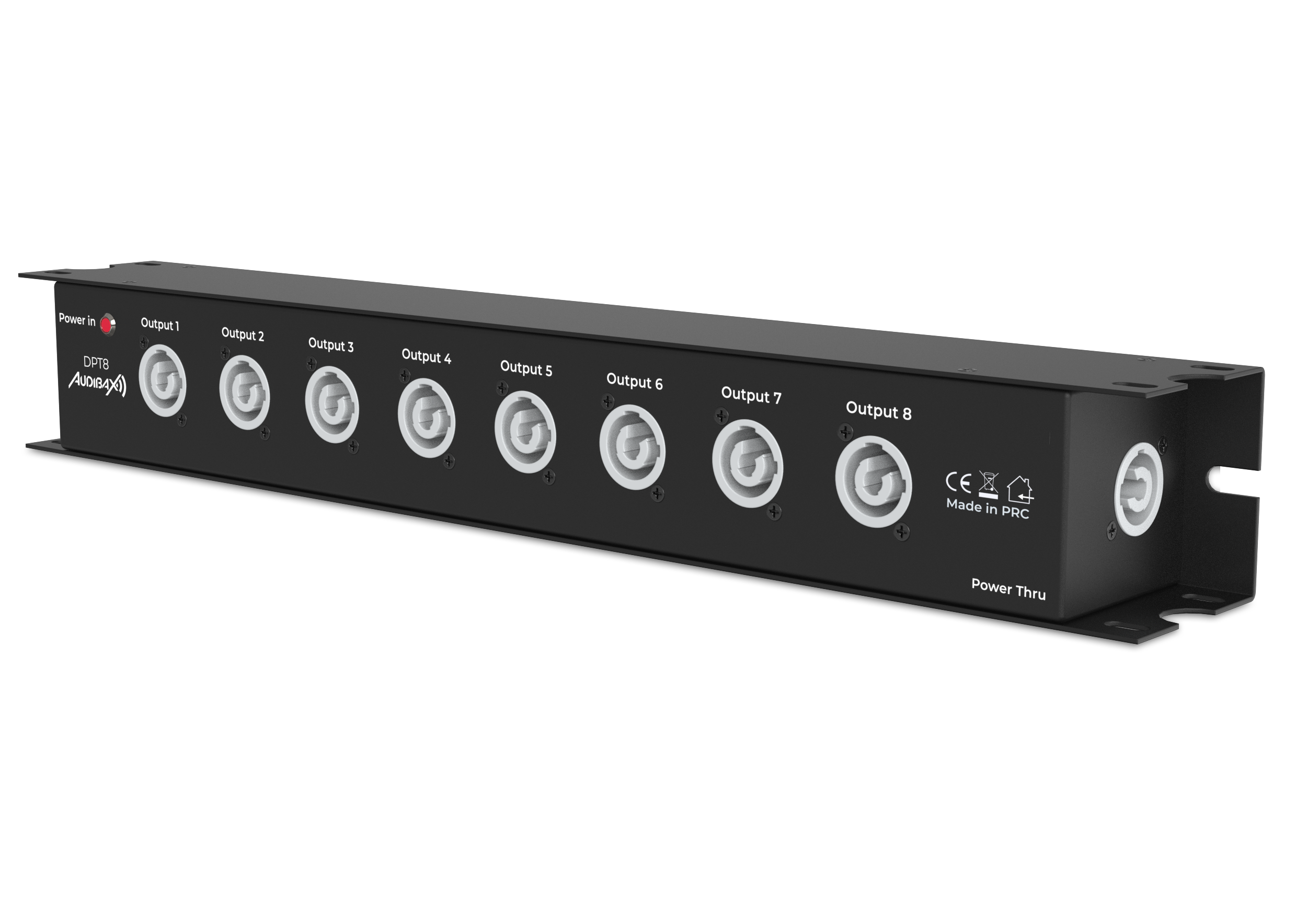

• Number of outlets: 8 + 1 (Link)
• Mounting options: Vertical rack mounting
• Material: Metal
• Weight: 1,34 kg

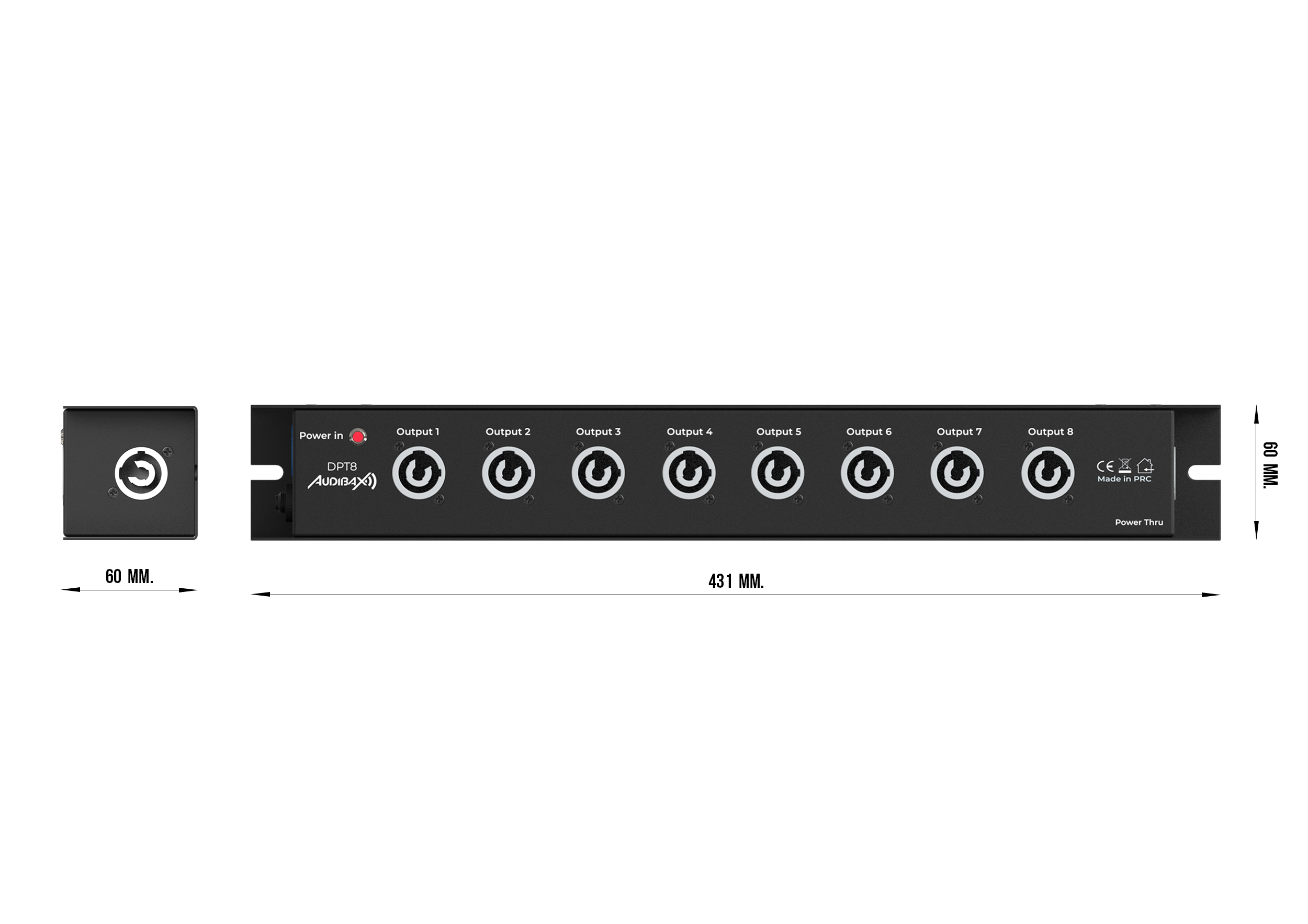

• Dimensions: 46 x 6 x 6 cm

Electrical Specifications

• Operating voltage: AC 220V, 50/60 Hz
• Amperage: 16A
• Maximum power: 3.5 kW
• Internal cable cross-section: 2.7 mm

Connectivity

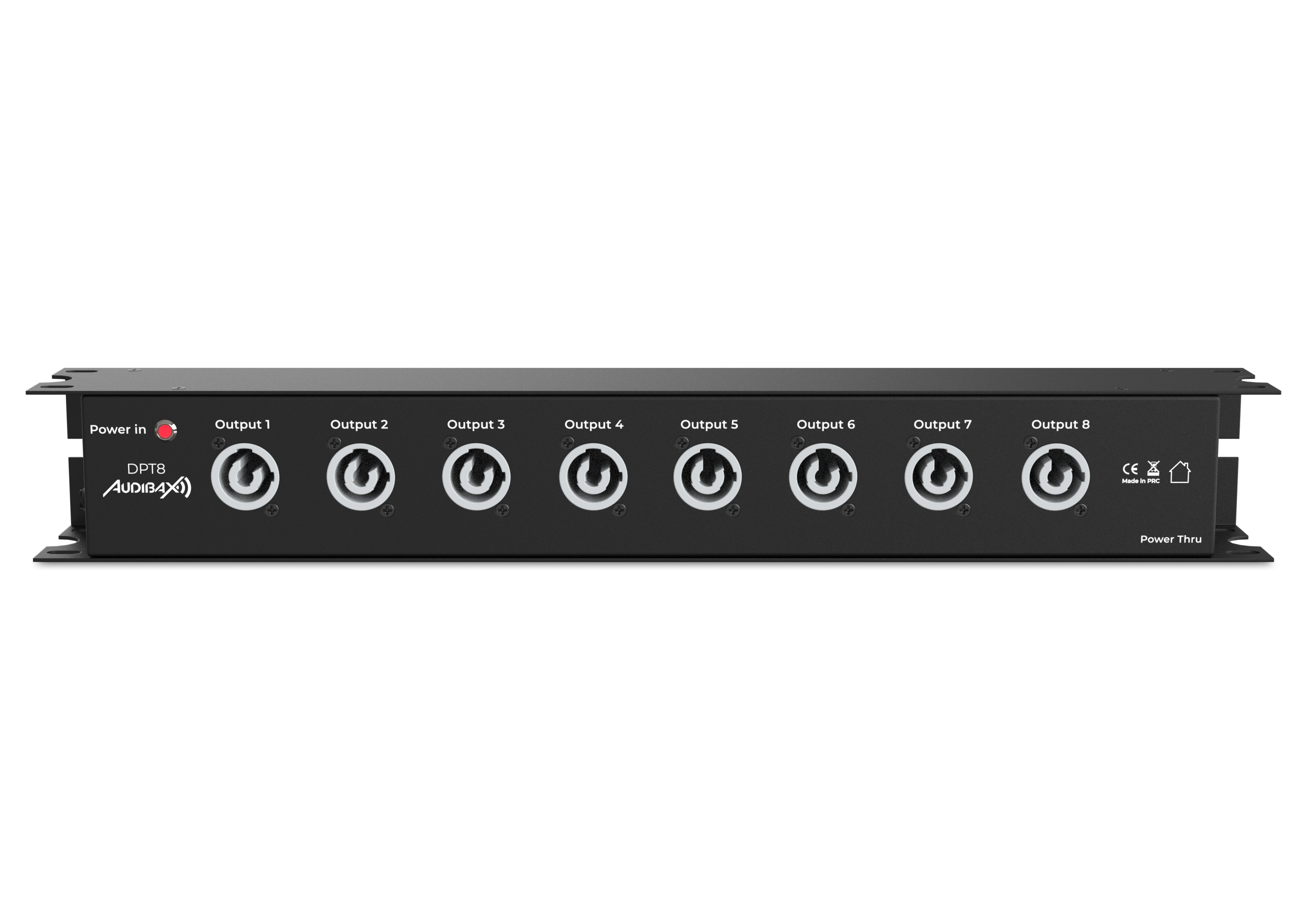

• Input connector type: PowerCON (Blue)
• Output connector type: PowerCON (Gray)

Certifications / Approvals

• Certifications: CE and RoHS
• Protection rating (IP): IP44

Applications

• Use: Professional audio, lighting, events, technical installations
• Solutions: Safe power distribution in racks and connected systems

Whats in the Box

• 1 x DPT8 power strip, 8 + 1 outlets, rack-mountable
