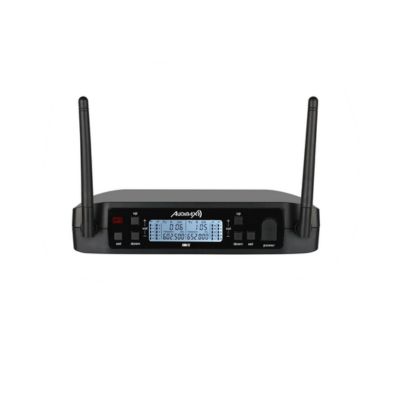

AWM R2 Receptor

New
  • Frequency type: Selectable
  • Frequency range: 640-690 MHz
  • Receiver type: Station receiver
  • Receiver connector: 2 XLR CH & 6.3 mm jack mixer
  • Transmitter connector: No
SKU 8474407184717 Category Tag

Description

The AWM R2 is a compact and efficient UHF wireless microphone receiver, ideal for professional installations, rental, and corporate applications. It offers 100 selectable channels in the 640–690 MHz range, allowing up to 10 simultaneous systems to operate stably and without interference.

It features XLR and 6.3 mm jack outputs, IR synchronization, a frequency response of 50 Hz–15 kHz, and a signal-to-noise ratio of 100 dB, ensuring clear and reliable transmission. Its lightweight ABS housing makes it a practical and versatile solution.



Frequency / Channels

  • Channel Selection: 100
  • Frequency Type: Selectable
  • Frequency: UHF
  • Frequency Range: 640-690 MHz

Transmitter / Receiver

  • Receiver Type: Station Receiver
  • Receiver Type: 2 XLR CH & 6.3mm Jack Mixer
  • Transmitter Connector: No
  • IR Sync Port: Yes

Audio Specifications

  • Frequency: 50Hz-15KHz
  • Signal Sensitivity: 100dBa
  • Signal-to-Noise Ratio: 100dB

Electrical Specifications

  • Power Supply: AC240V-DCC 12v
  • Power Consumption: 80mA

Additional Features

  • Maximum Number of Operating Units: 10 sets used at the same time
