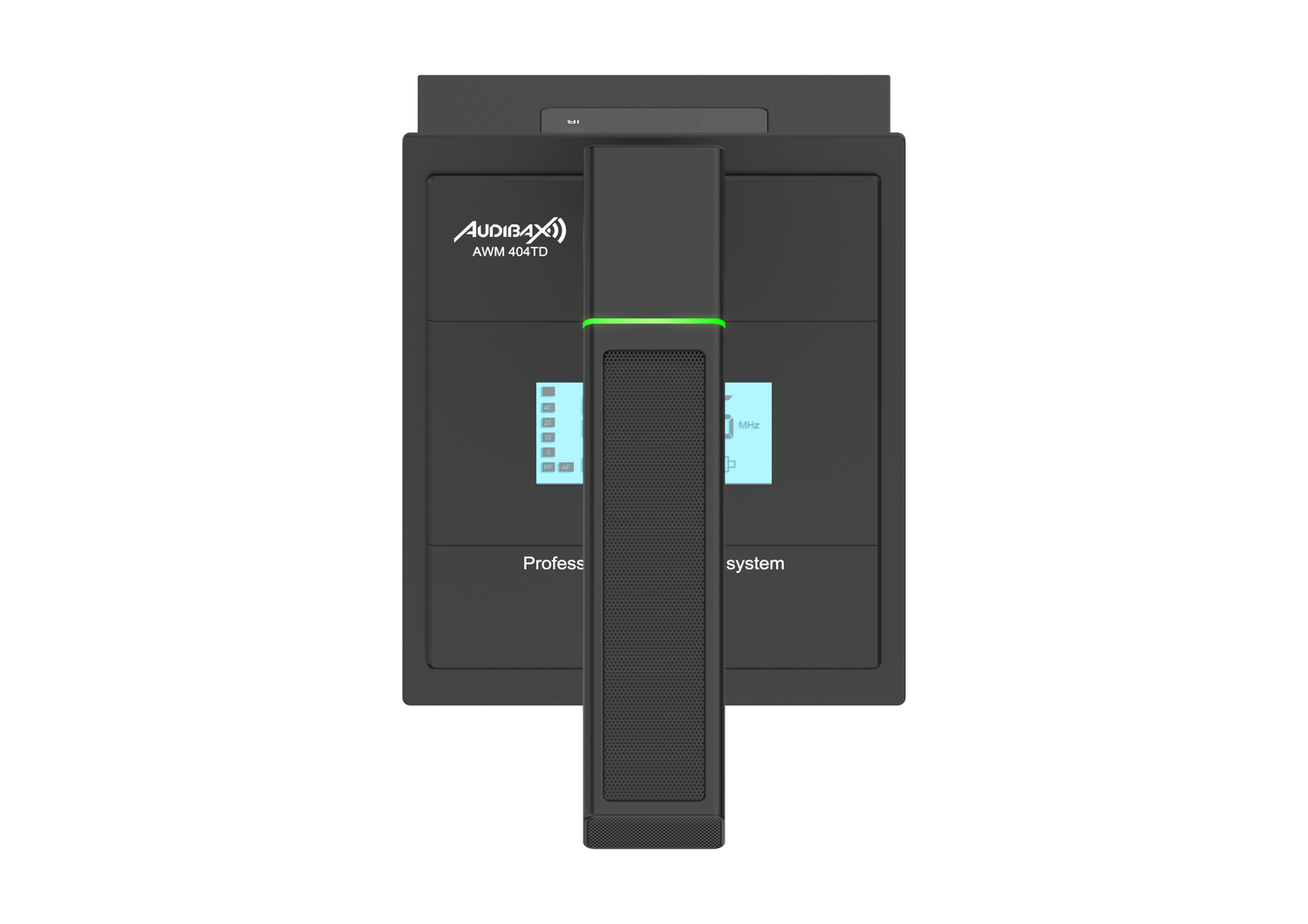

AWM 404 TD

Experience exceptional sound performance with the Audibax AWM 404 TD, a complete wireless system that elevates your listening experience. Equipped with a state-of-the-art receiver and four handheld transmitters, this system offers a comprehensive solution to ensure a stable and powerful transmission of your voice and sound.

The high-tech receiver operates with precision thanks to its PLL (digital frequency synthesizer) oscillation mode, ensuring stable and interference-free transmission. Its 5dBuV sensitivity allows it to pick up weak signals with clarity. In addition, it offers balanced and unbalanced output options for versatile connectivity.

Each of the four table microphones with maximum precision RF output power, ensuring wide and powerful coverage in any configuration. PLL oscillation mode and transmit frequency stability of less than 30 ppm ensure accurate, clipping-free transmission. With an exceptional dynamic range of ≥100dB (A) and a frequency response of 50Hz-15KHz, these microphones capture every nuance of your voice, providing authentic and detailed reproduction.

Equipped with condenser microphones, they offer a maximum input pressure of 130dB SPL for powerful and authentic performance. Completing this high performance wireless system, the receiver is efficient with a voltage of 12-16V and working current ≤350mA. The Audibax AWM 404 TD is the ideal choice for events and conferences, providing an exceptional sound experience in any setting.

Receiver:

• Oscillation mode: PLL (digital frequency synthesizer).
• Frequency response: 50Hz-15KHz
• Sensitivity: 5dBuV.
• Balanced output (XLR connector): 250 mV/600 Ω.
• Unbalanced output (1/4″ connector): 400 mV/K3.
• Operating voltage: DC 12-16 V.
• Operating current: ≤350mA.

Conference microphone:

• Maximum precision RF output power.
• Oscillation mode: PLL (digital frequency synthesizer).
• Broadcast frequency stability: <30ppm.
• Dynamic range: ≥100dB (A).
• Frequency response: 50Hz-15KHz.
• Maximum input pressure: 130dB SPL.
• Microphone: Dynamic.
• Power supply: 2 AA alkaline batteries (1.5V).
